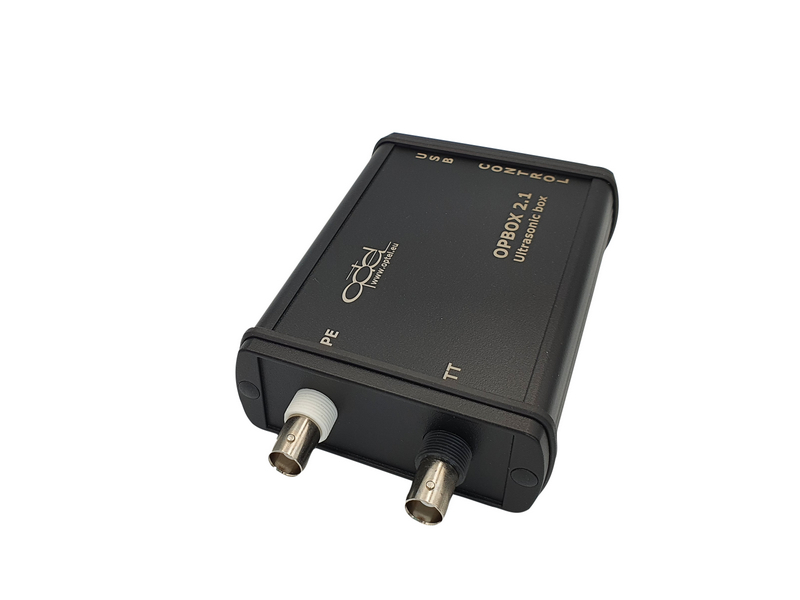

OPBOX ver 2.1 Mini Ultrasonic Box with Integrated Pulser and Receiver
OPBOX 2.1 is a complete ultrasonic testing device, suitable for all ultrasonic measurements and due to many additional digital inputs/outputs and internal processor it can be used as a controller for more complicated devices. Opbox 2.1 can work together with devices like multiplexers or scanners. The box has an implemented one channel pulser & receiver and can be used with one or two transducers (one is sending, and the second one receiving). The system allows to buffer many acquisitions in internal memory and forward whole packet of data to control application. In this way, the high throughput of data reading from the device is obtained.
OPBOX 2.1 is a complete ultrasonic testing device, suitable for all ultrasonic measurements and due to many additional digital inputs/outputs and internal processor it can be used as a controller for more complicated devices. Opbox 2.1 can work together with devices like multiplexers or scanners. The box has an implemented one channel pulser & receiver and can be used with one or two transducers (one is sending, and the second one receiving). The system allows to buffer many acquisitions in internal memory and forward whole packet of data to control application. In this way, the high throughput of data reading from the device is obtained.
Features -Low noise preamplifier (0.74 nV/√(Hz)) -High gain up to +89 dB -Switchable analog filters -Support fast TGC (time gain compensation) -2 signal inputs PE and TT -Input attenuator (-20dB) -Input Impedance 50 Ohm, 10pF -10 bit A/D Converter -100MHz sampling frequency, 8bit samples -Up to 512k x 16bit samples memory -Delay settings up to 65535 sample periods -various triggering mode -BNC or Lemo analog connectors -dimensions: L 100mm W 82mm H 32mm -DB15 connector: I/O lines 6 Inputs and 6 Outputs -USB-2.0 High Speed (480MBps) -Power supply: USB connector <500mA -weight: 310g
Features
-Input attenuator (-20dB) -Input Impedance 50 Ohm, 10pF -10 bit A/D Converter -100MHz sampling frequency, 8bit samples -Up to 512k x 16bit samples memory -Delay settings up to 65535 sample periods -various triggering mode -BNC or Lemo analog connectors -dimensions: L 100mm W 82mm H 32mm -DB15 connector: I/O lines 6 Inputs and 6 Outputs -USB-2.0 High Speed (480MBps) -Power supply: USB connector <500mA -weight: 310g
Low noise preamplifier (0.74 nV/√(Hz))
High gain up to +89 dB
Switchable analog filters
Support fast TGC (time gain compensation)
2 signal inputs PE and TT
100MHz sampling frequency, 8bit samples
Neque officiis dolore maiores et exercitationem quae est seda lidera pat claero

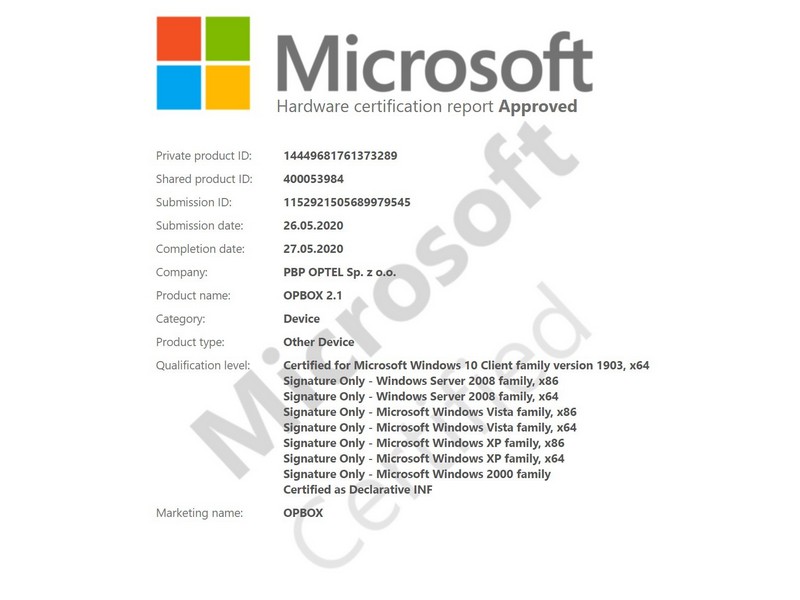

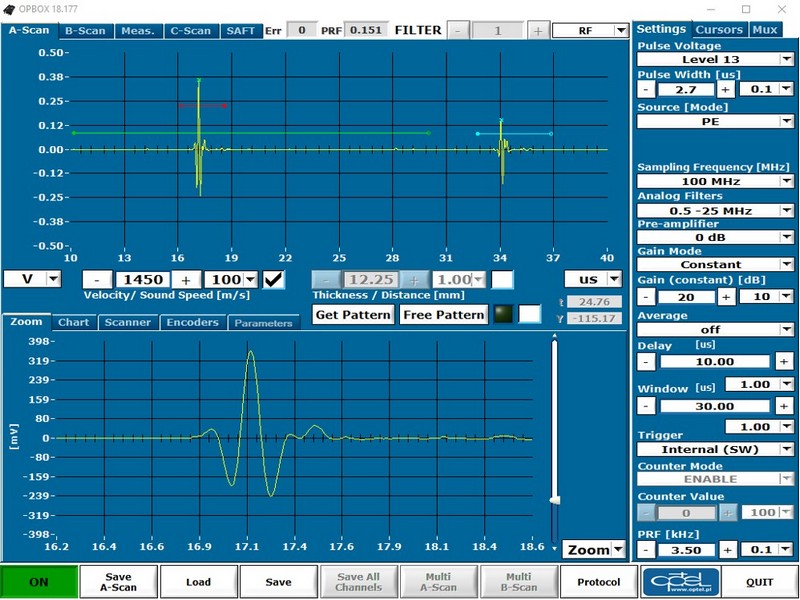

We are delivering a standard version of the software (for any Microsoft Windows up to 10 x64 with Microsoft Hardware certification report Approved) and for special needs: SDK with ready to use examples for LabView, MATLAB x64, C++ wrapper for dll, Python and Linux., and also low-level description of how to control our devices directly from any USB tools
